I am building home theaters, but never created any portfolio.  It is time to finally do it, so here is my last project: Home Theater in Rhode Island.


When I was asked to build home theater some carpentry work was in progress and some work was done.
Carpenter, I worked with, is very cooperative and he did what I asked for.  For example he tilted left and right corner of the walls 32 for left and right speakers, so sound goes toward listeners, not along the walls.

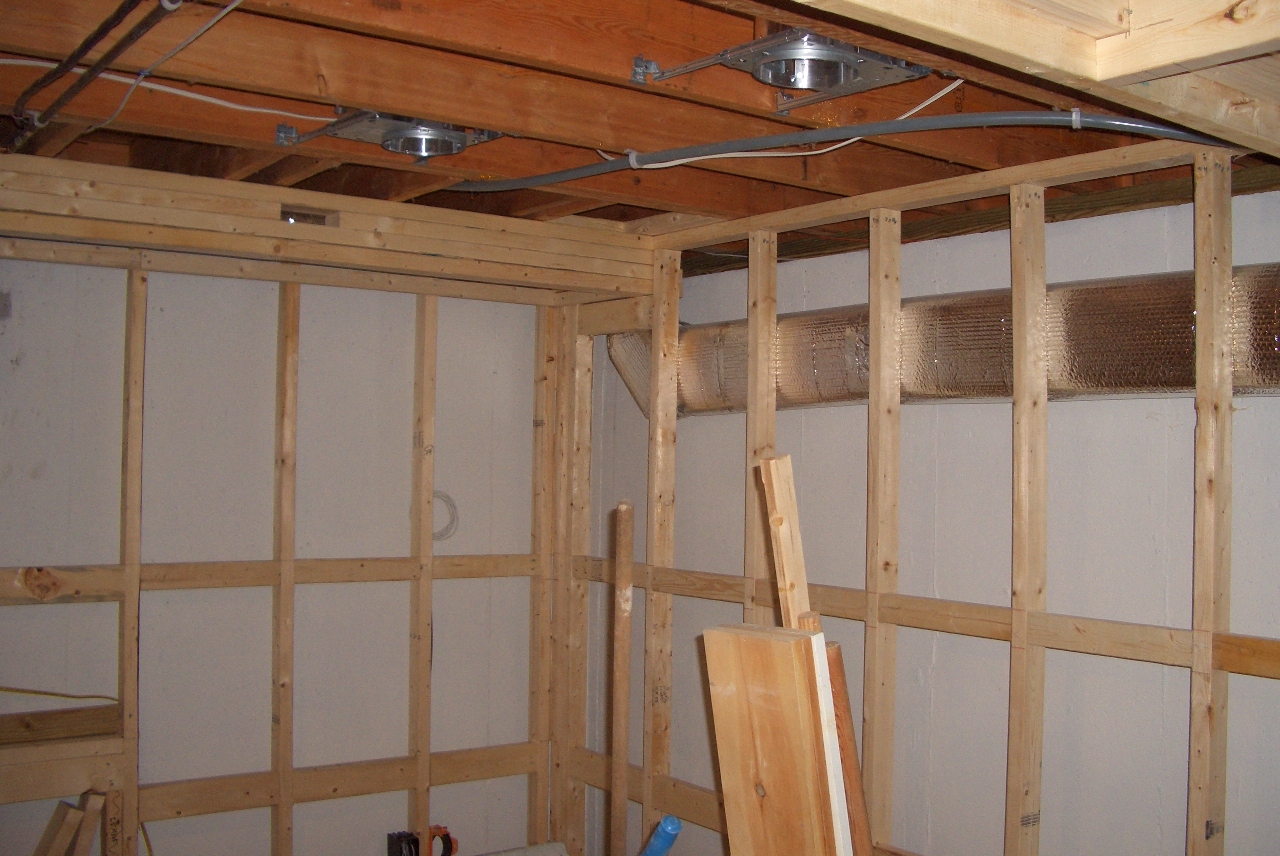

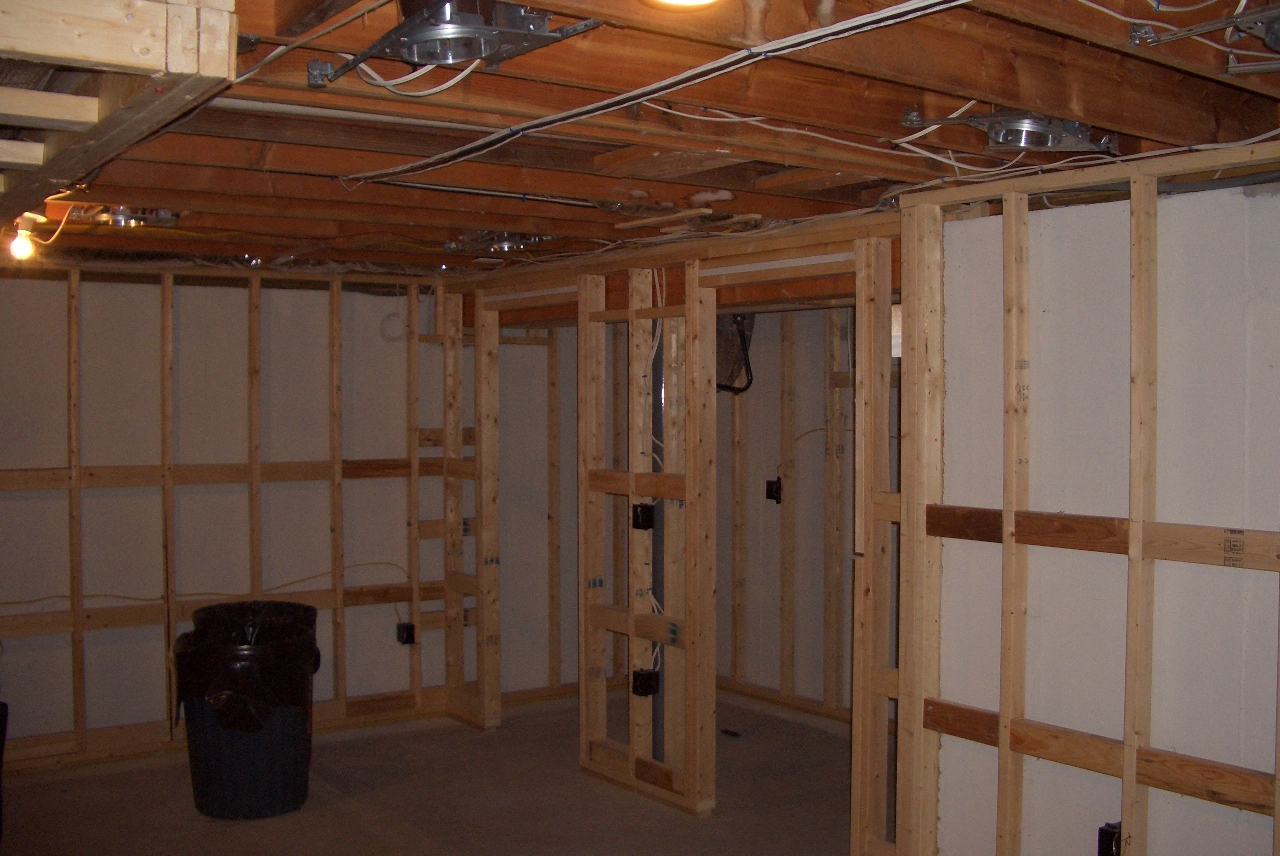

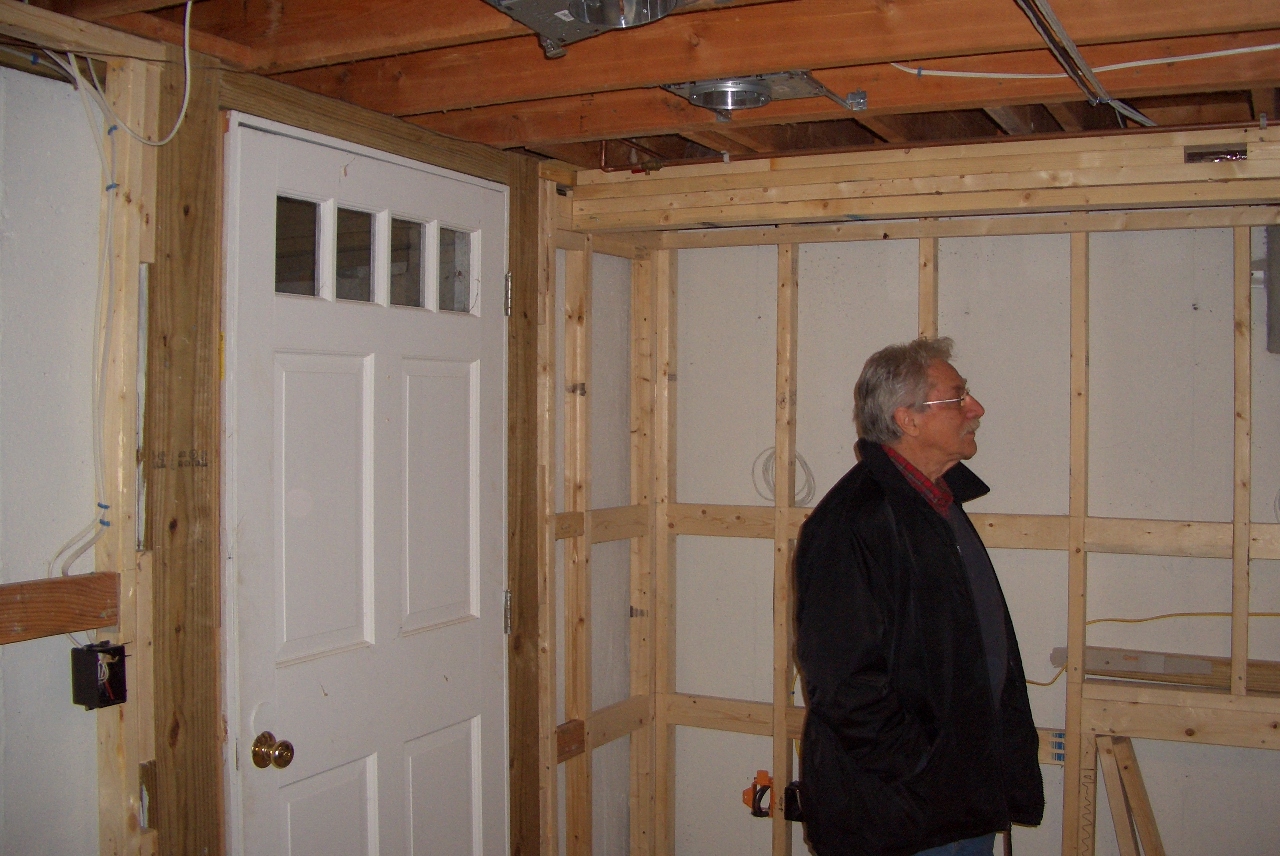

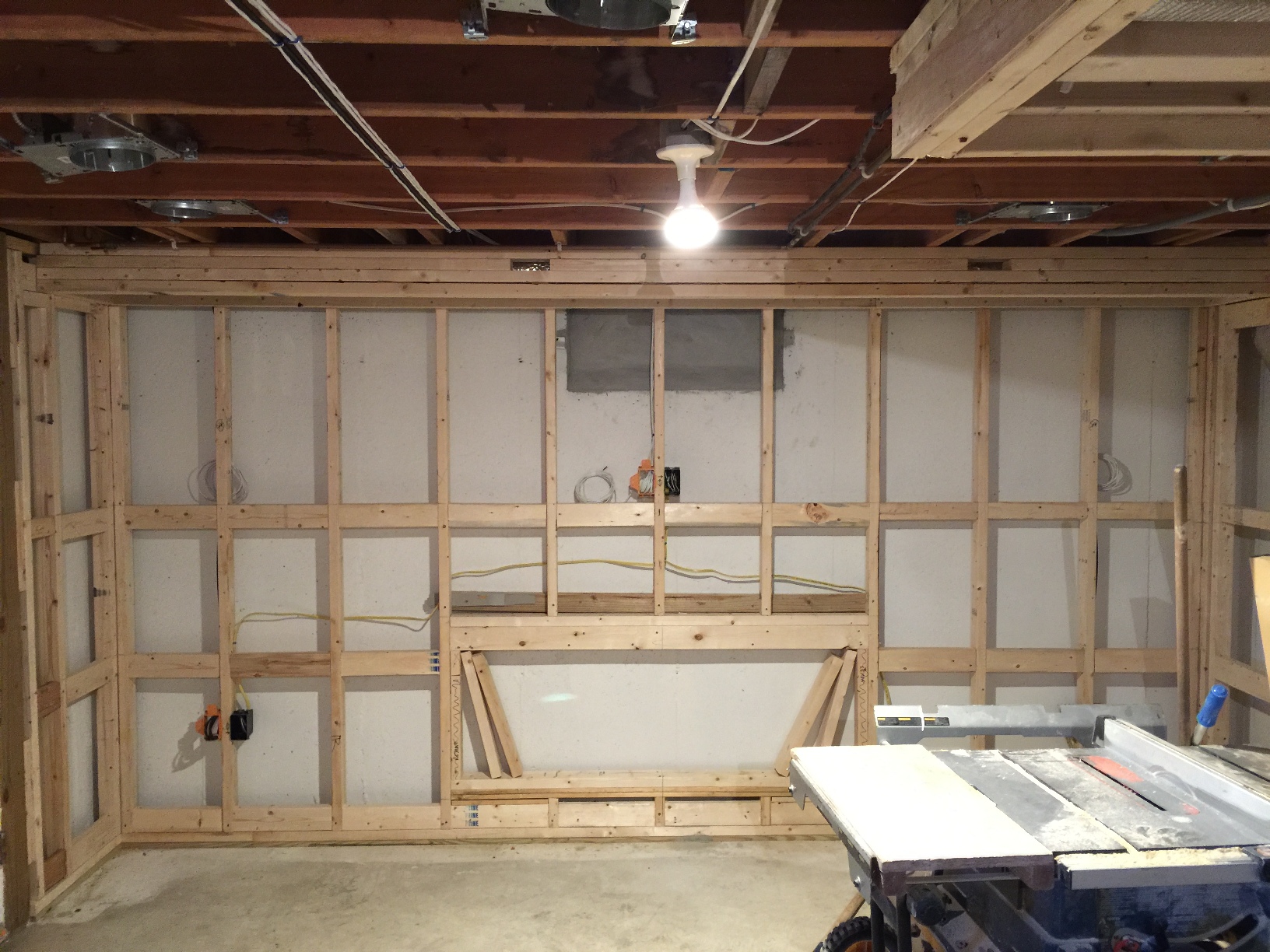

This is what I started with:


After installation

I recommended (and I always recommend for home theaters) all walls and ceiling to be satin black.  Nothing glossy at all.  Client decided to paint sides dark gray.
The screen is 133 diagonal with 2.35 aspect ratio.  (122.5" wide x 52" high) Projector Sony UHD VW1100ES.
This is 7.2.4 system built on Denon AVR X7200WA and Parasound 2125 v2 with 11 Triad speakers and two SVS SB13 Ultra Subwoofers .
Seats: Fortress Bijou Back w/Madison Arms Theater Chair
Uph: Premium Leather
Color: Luxtan Black.

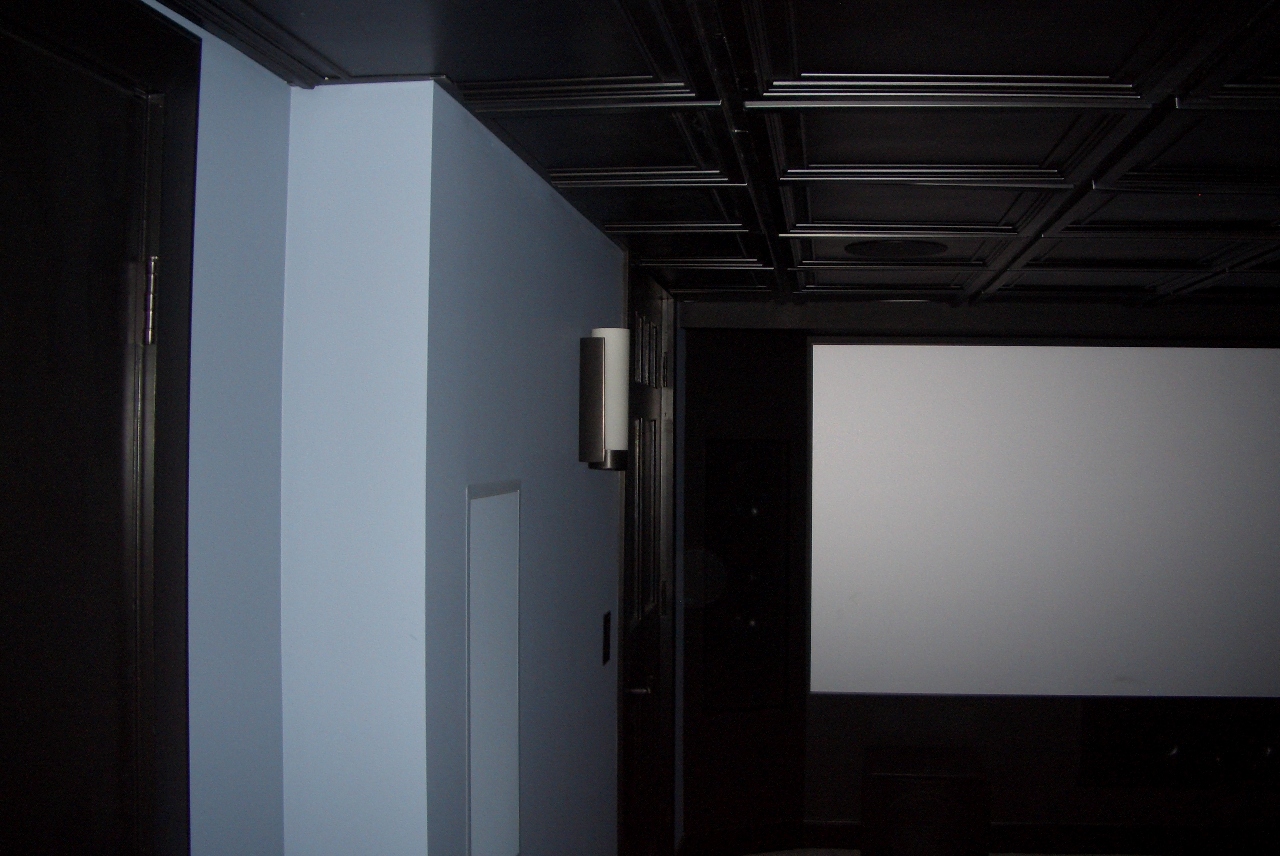

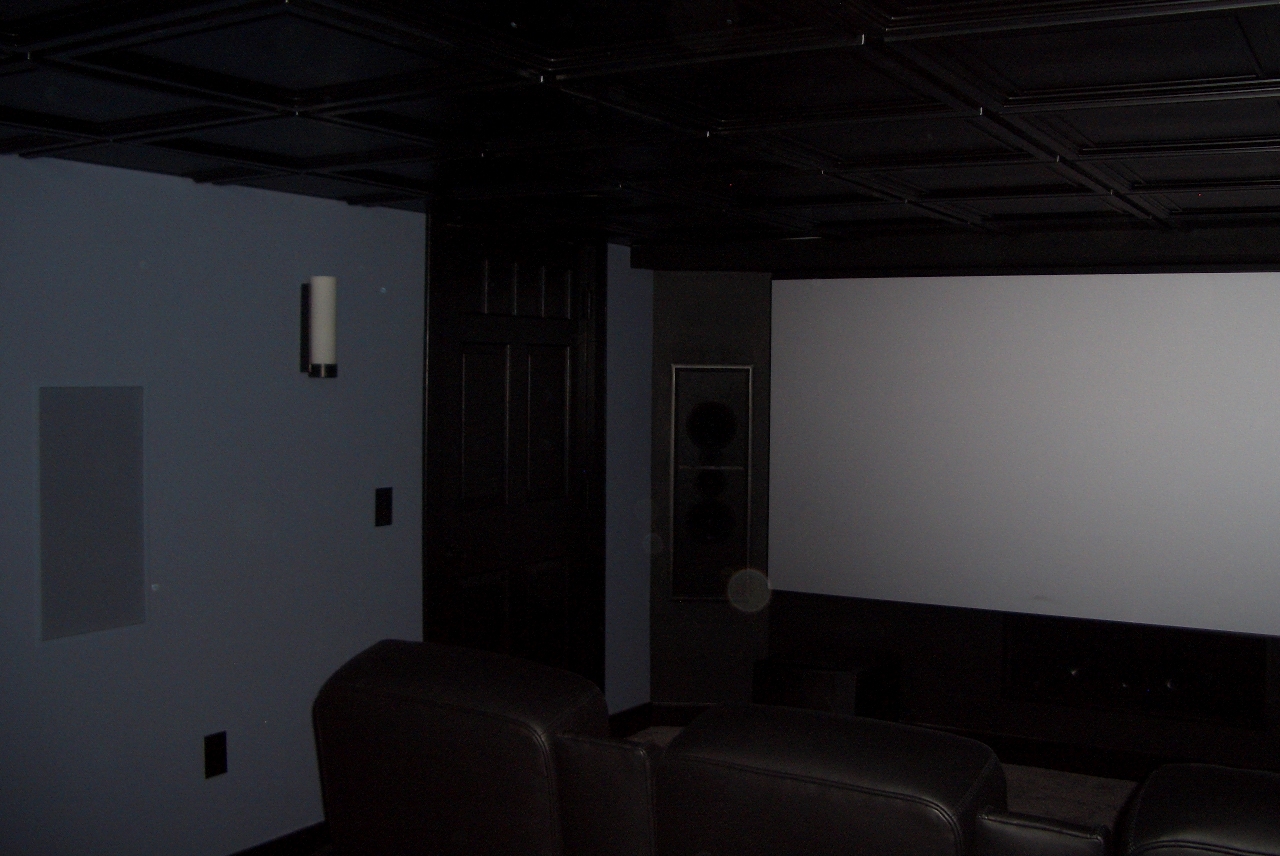

Left corner showing left speakers, screen and entrance from outside.

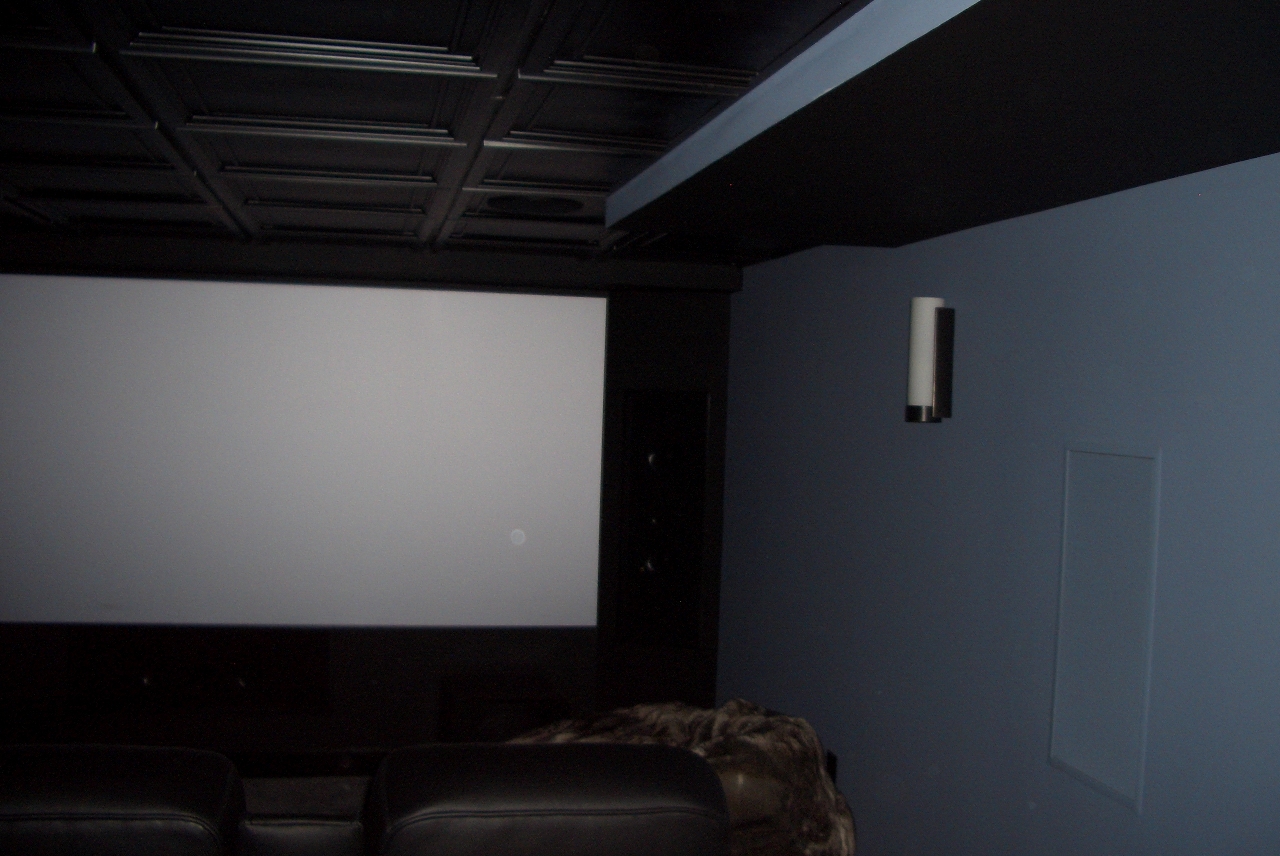

Right corner showing right speakers and  screen .

Left corner shown from different perspective.

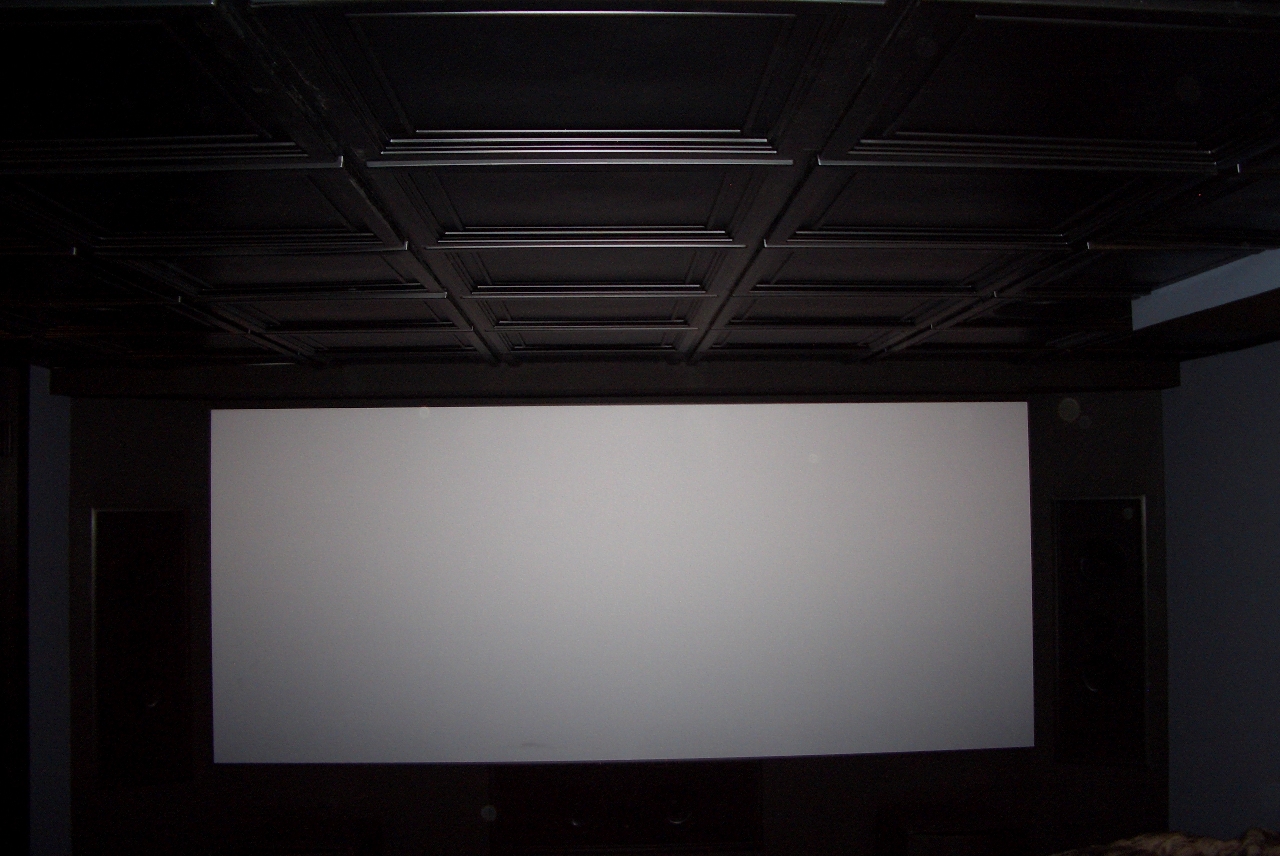

Full width of the room with ceiling panels and LRC speakers.

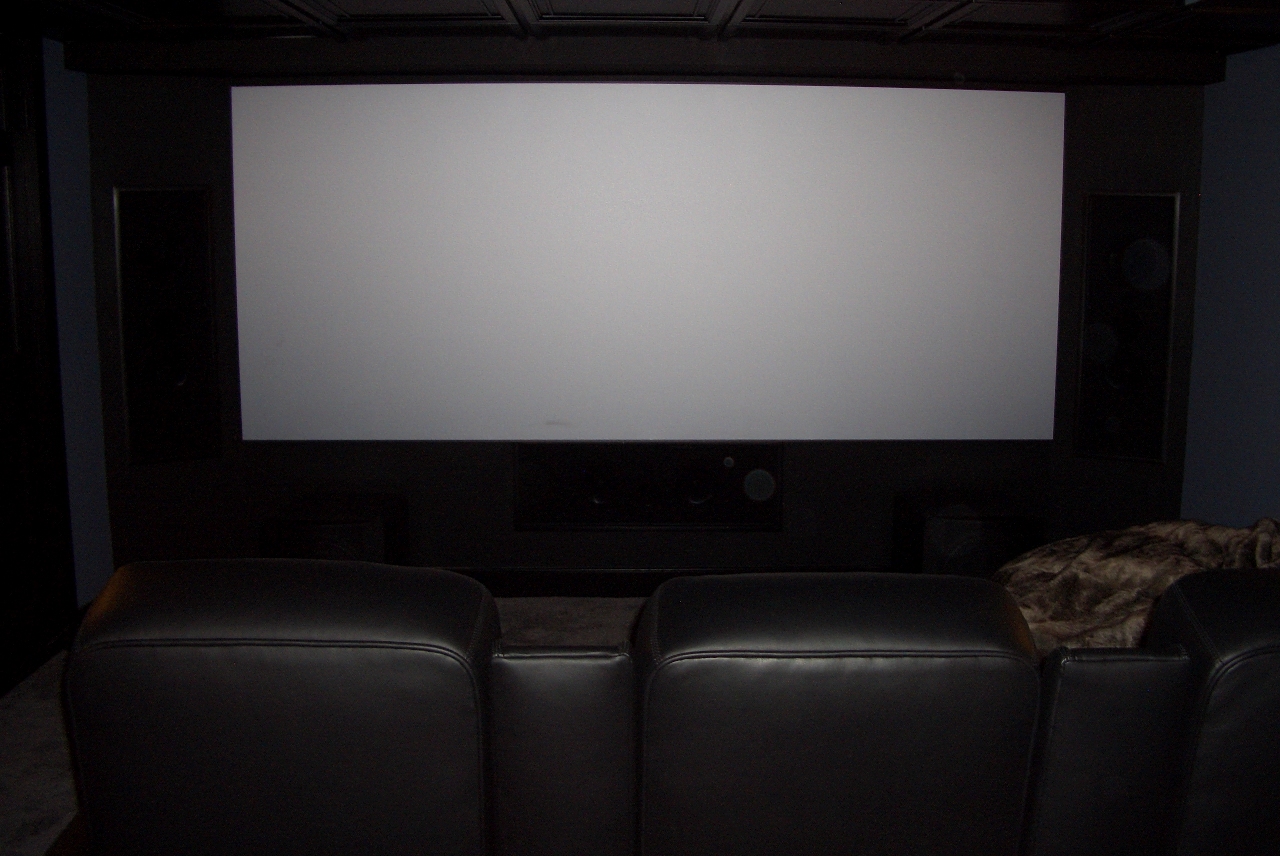

Full width of the room with front seats and LRC speakers.

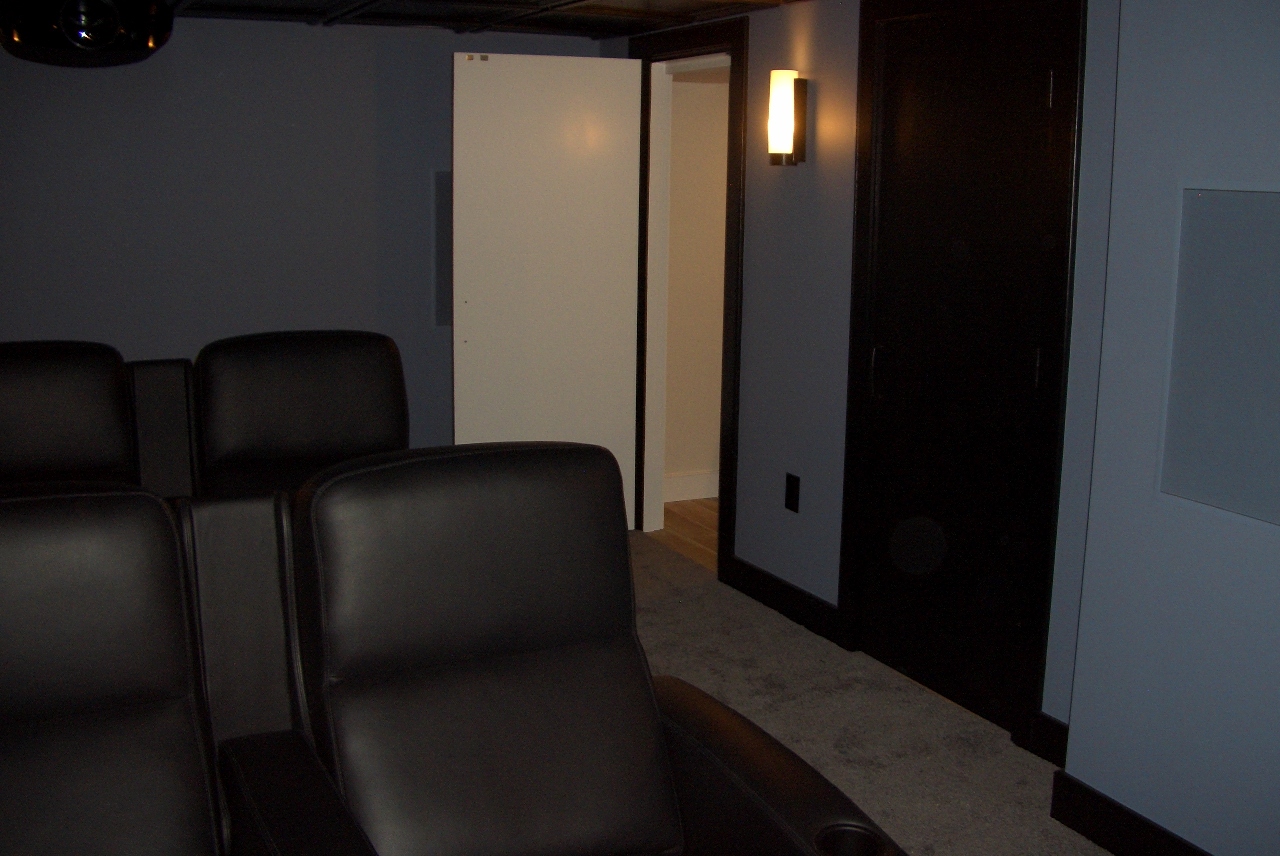

Entrance to equipment room.

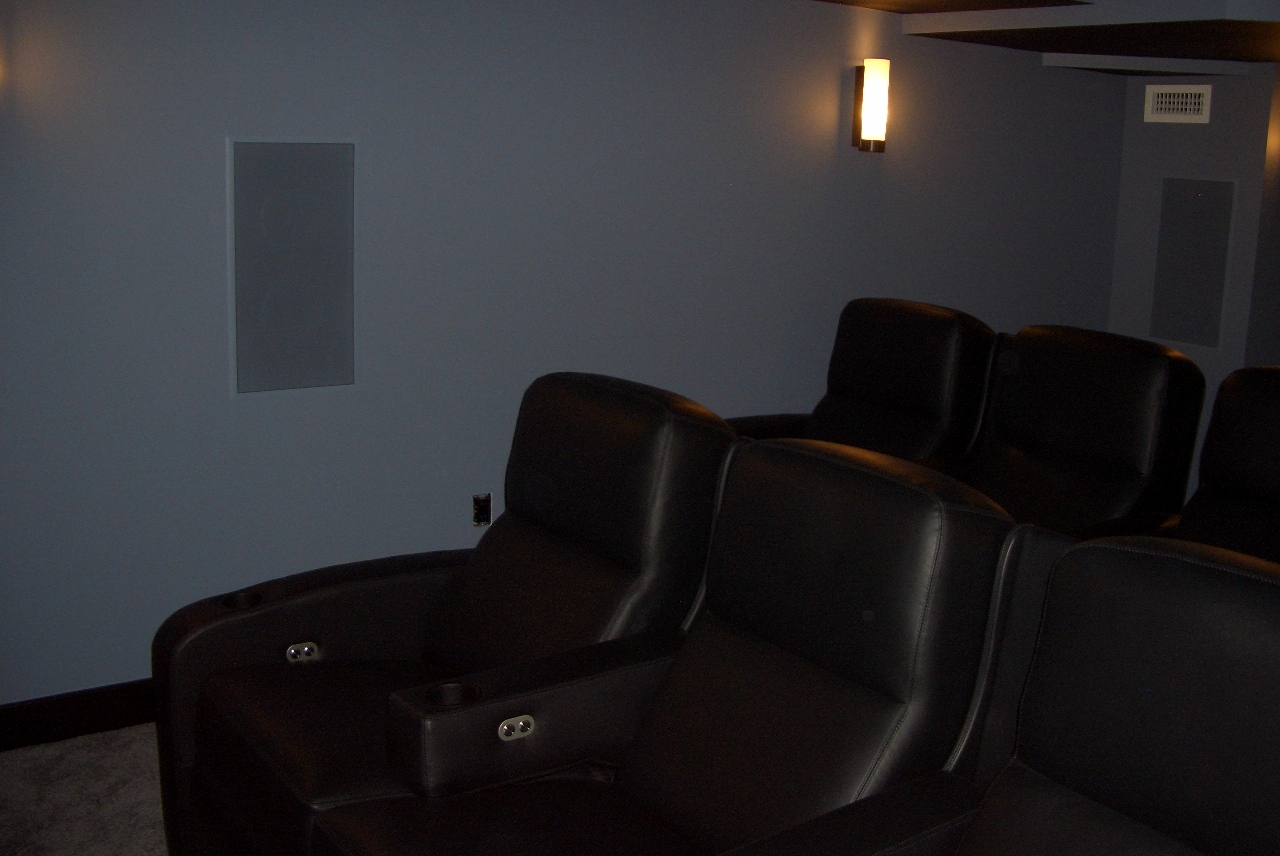

Right speakers and seats.

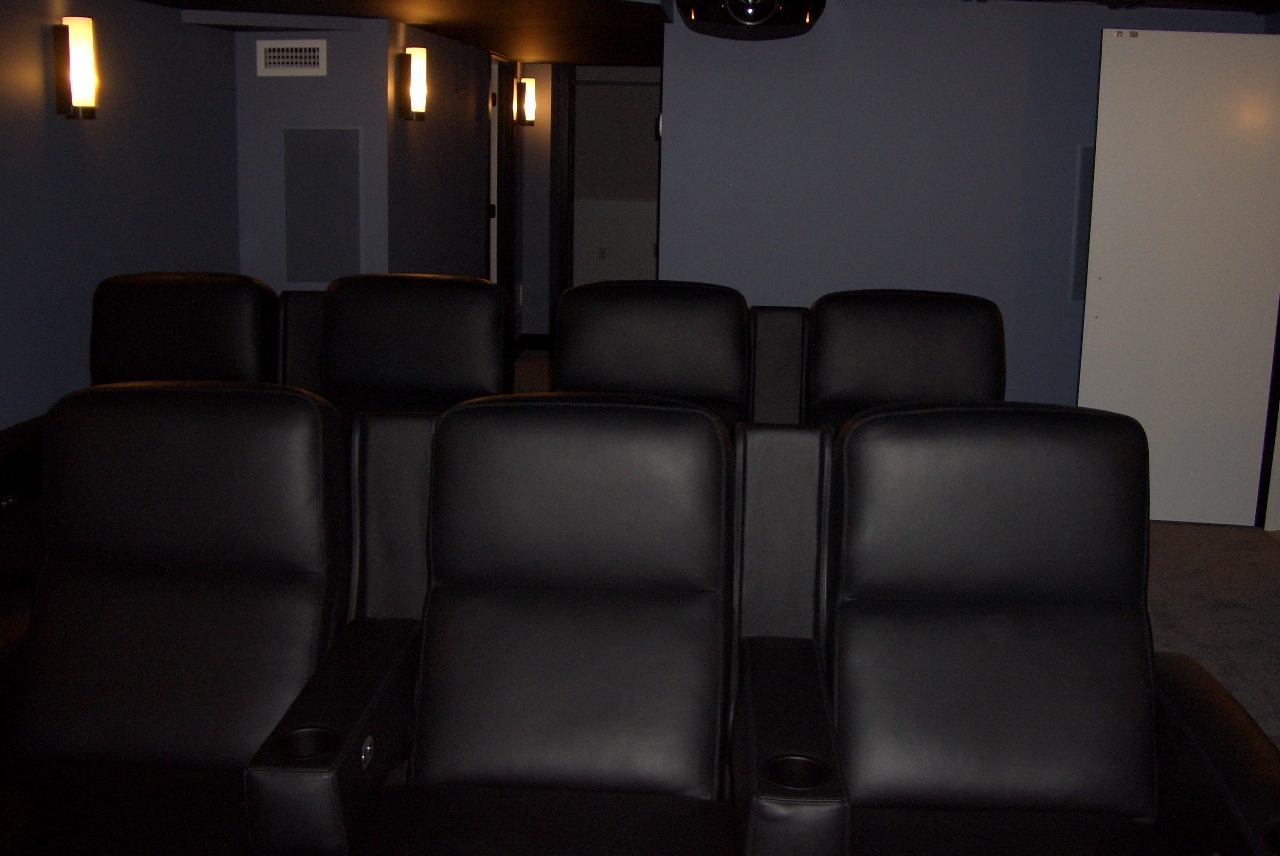

All seats and main entrance.

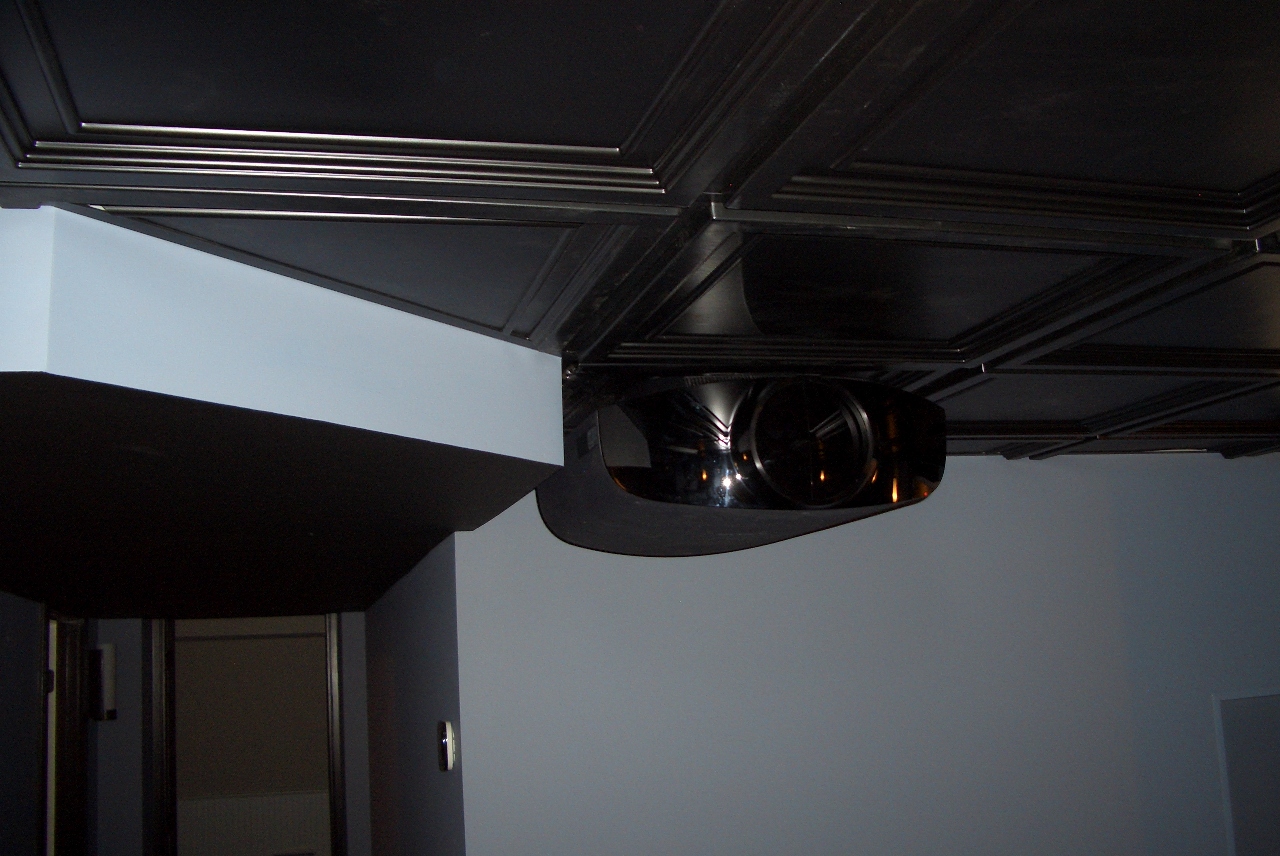

UHD Projector VW1100ES.

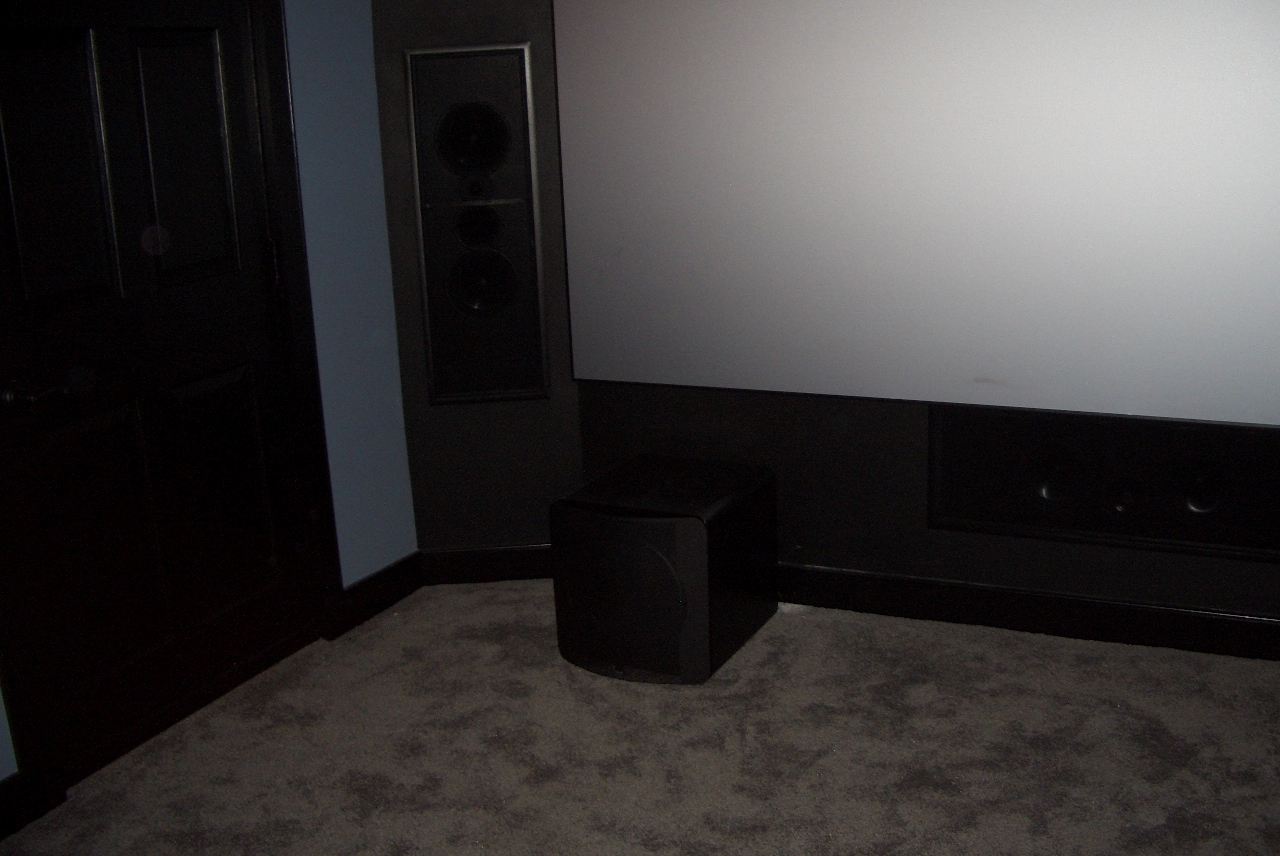

Left Subwoofer.

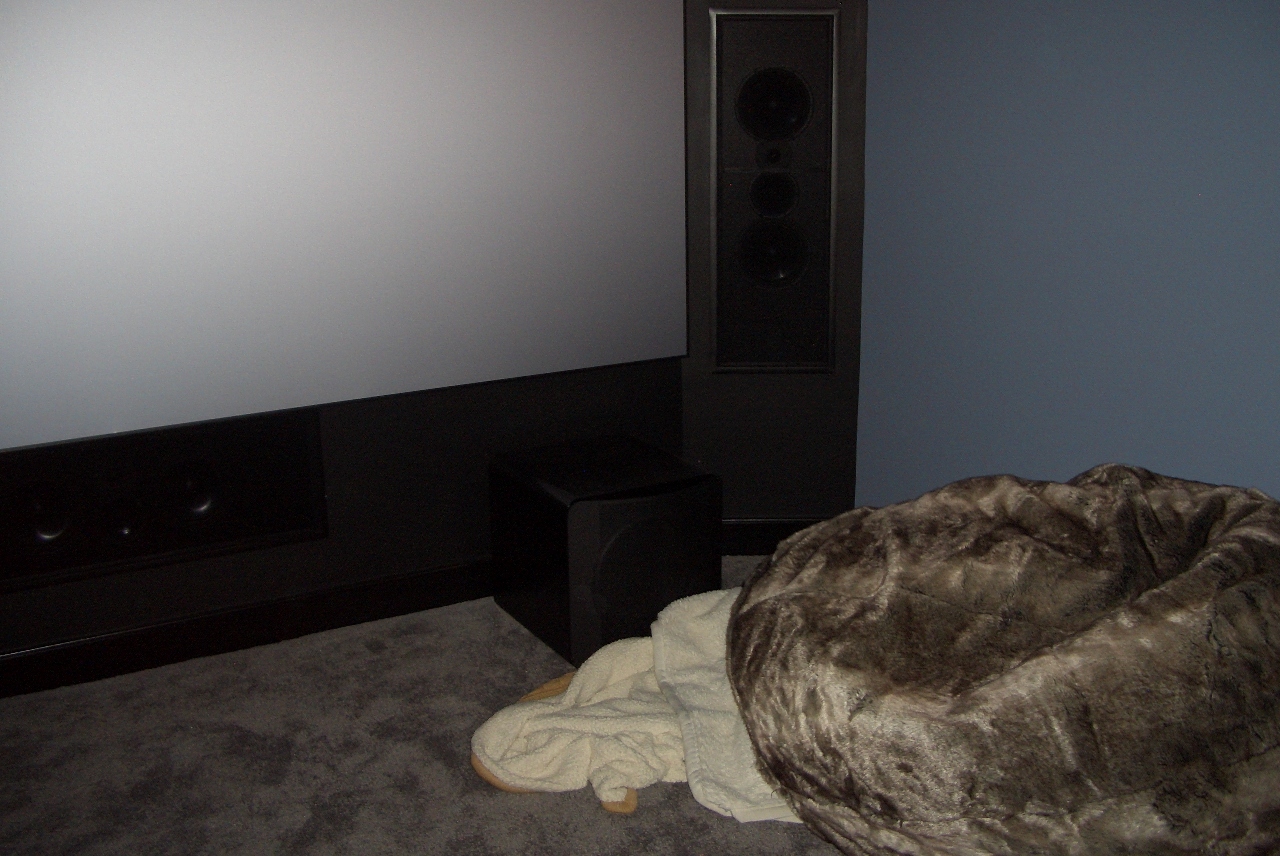

Right Subwoofer.

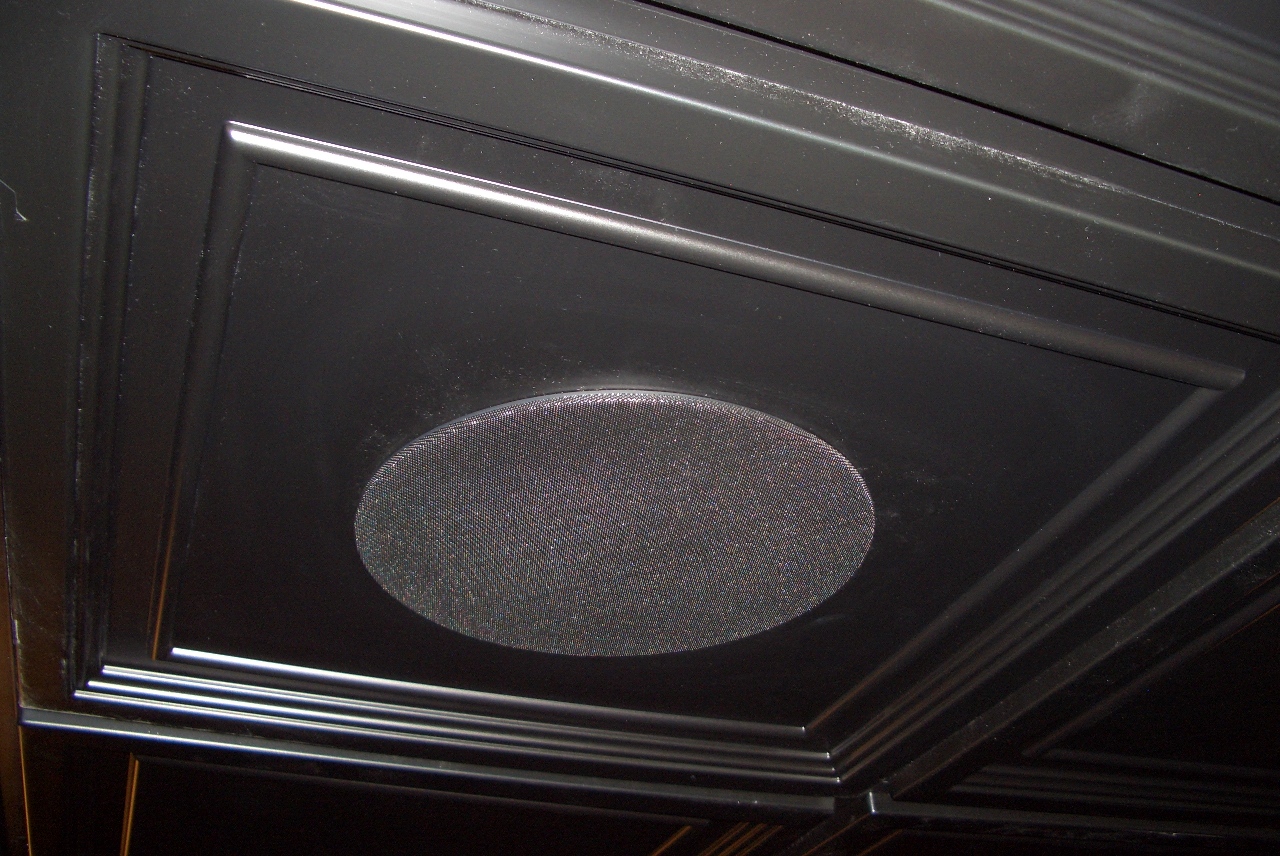

Atmos speaker in the ceiling.

Center speaker.


MRX-10 controller.

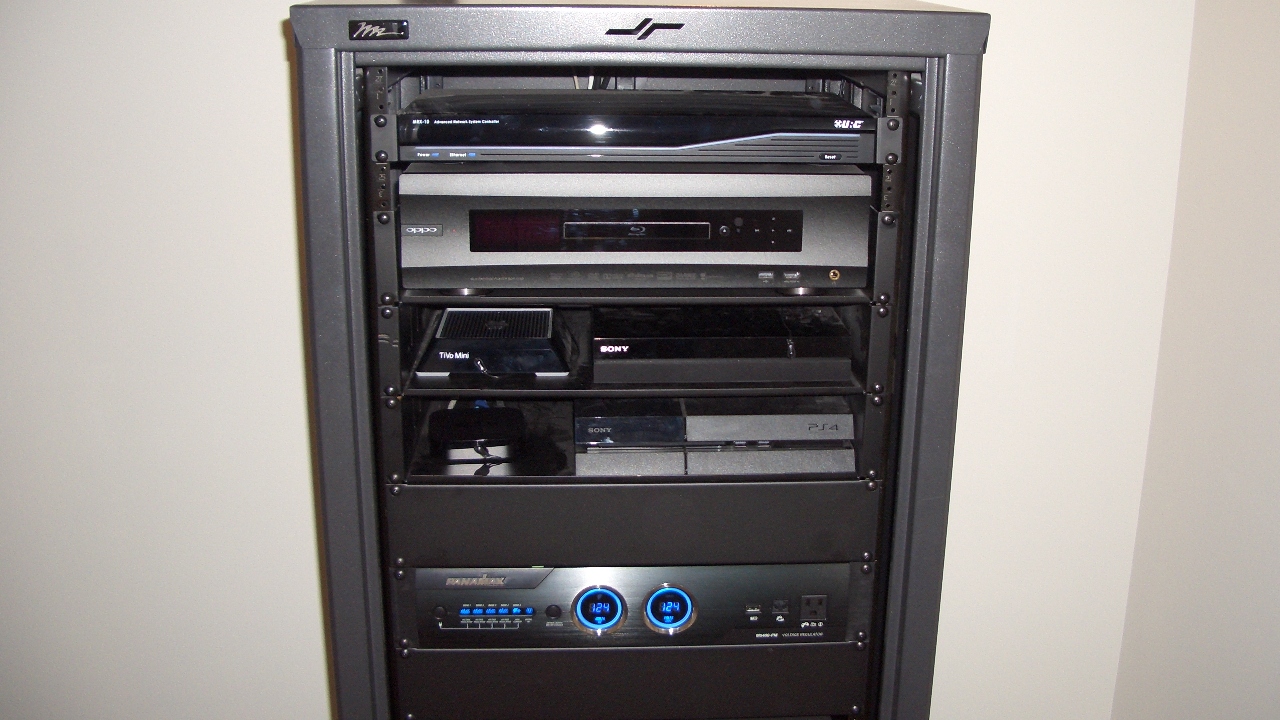

Oppo BluRay Player.
Mini Tivo + Sony UHDP.
Apple TV + PS4.
16 port switch on the back of rack

Panamax surge protector.

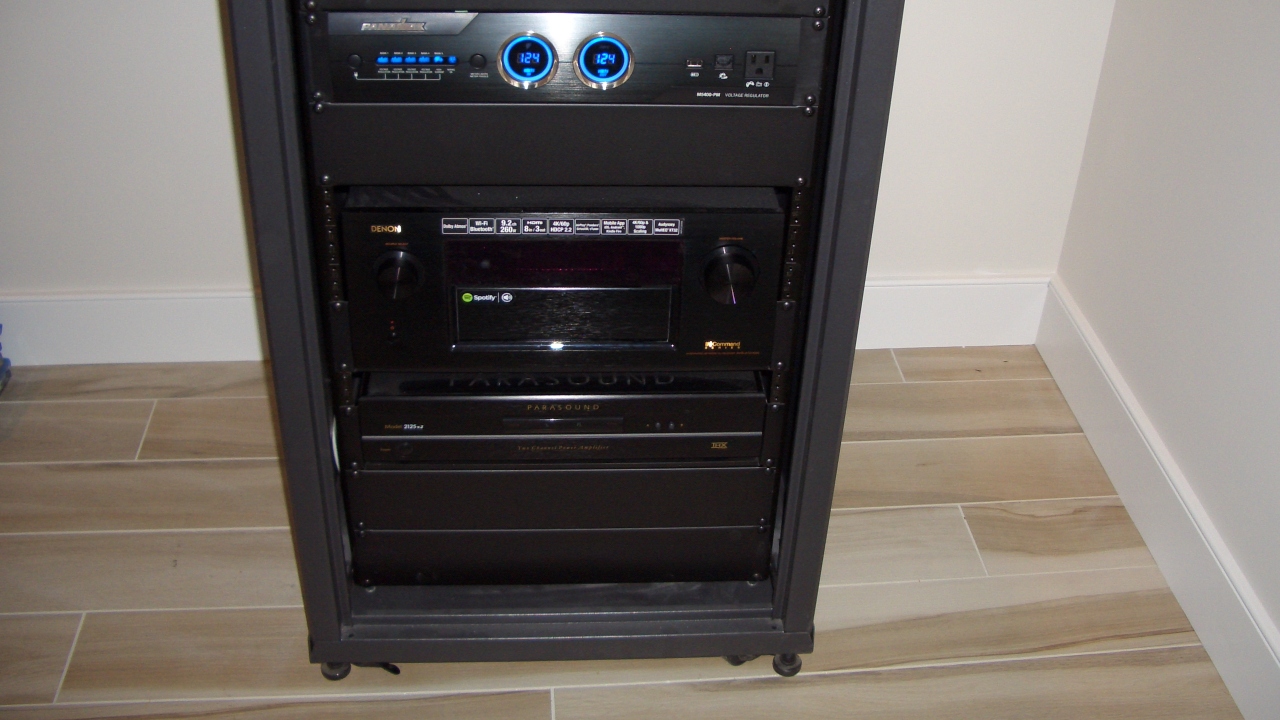

Denon AVR-X7200WA
Parasound 2125 v2.
TRF-ZW1on the back of rack to control ZW1 compatible devices.

HT room will be tested and acoustical panels added  - if necessary.
